Hadoop vs Spark: Unraveling the Big Data Dilemma

Introduction

Hadoop: Imagine you have a really large puzzle, and you want to solve it. Hadoop is like a team of workers where each worker gets a piece of the puzzle. They work independently on their pieces, and once they’re done, the final picture is assembled. In the tech world, this puzzle is your big data, and each piece is a chunk of that data.

~ Hadoop

Spark: Now, imagine you have the same puzzle, but instead of having workers do their tasks one by one, you have a team that can work on multiple pieces simultaneously. Spark is like having a super-quick team that doesn’t waste time waiting for one worker to finish before starting on the next piece.

~ Spark

Hadoop uses a system called MapReduce. “Map” is when the workers analyze their puzzle pieces, and “Reduce” is when they bring the results together to create the final solution. Hadoop is excellent for handling massive amounts of data, but sometimes it’s a bit slow because it has to go through all the data step by step.

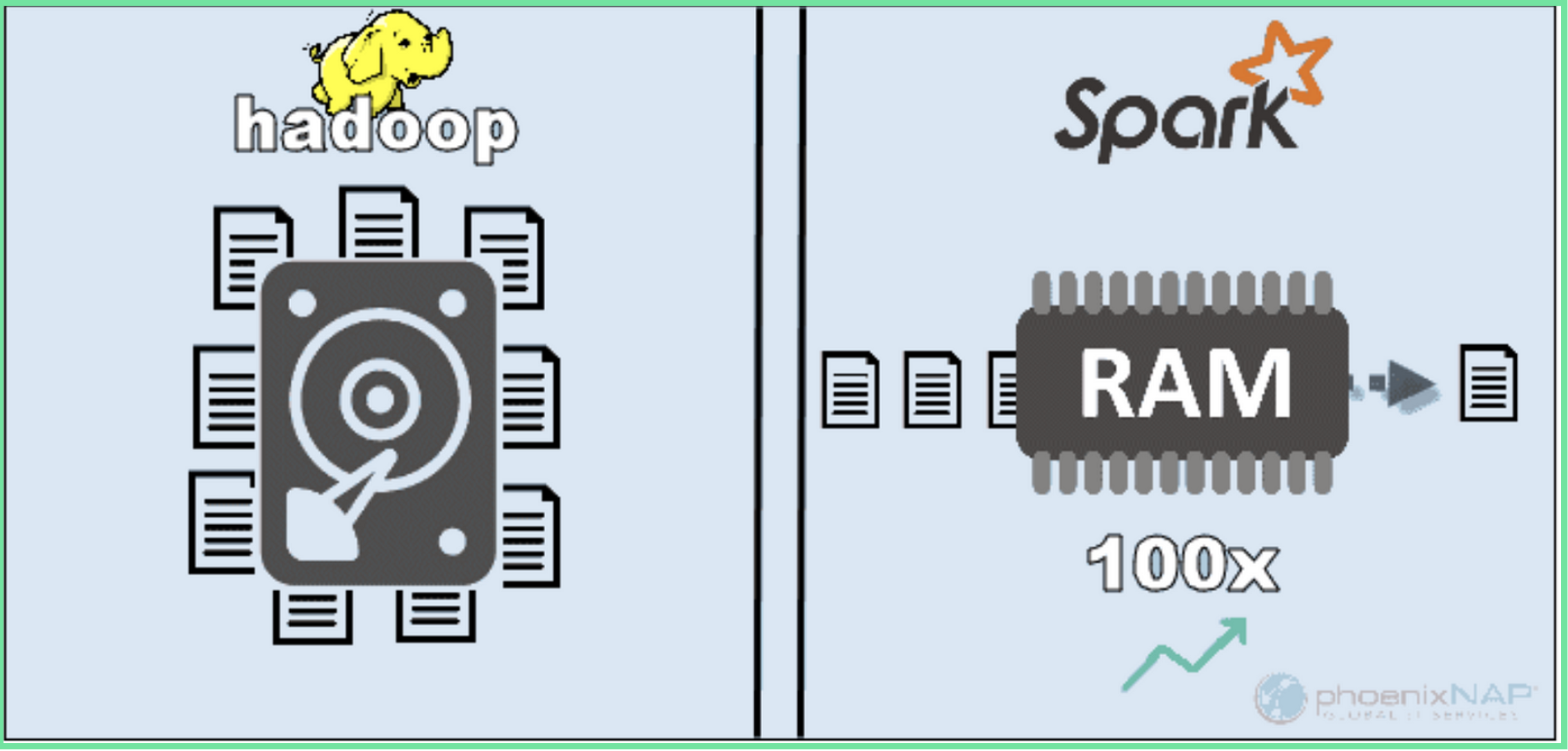

Spark can do things much faster than Hadoop because it keeps more of the data in its memory, so it doesn’t have to constantly read from and write to a storage system. It’s like having a group of people working on different parts of the puzzle, but they can share information quickly.

In summary, both Hadoop and Spark help you handle huge amounts of data, but Spark does it faster by keeping more data in memory and processing tasks in parallel. It’s like comparing a team that works step by step to one that can multitask and share information on the fly.

Hadoop Architecture:

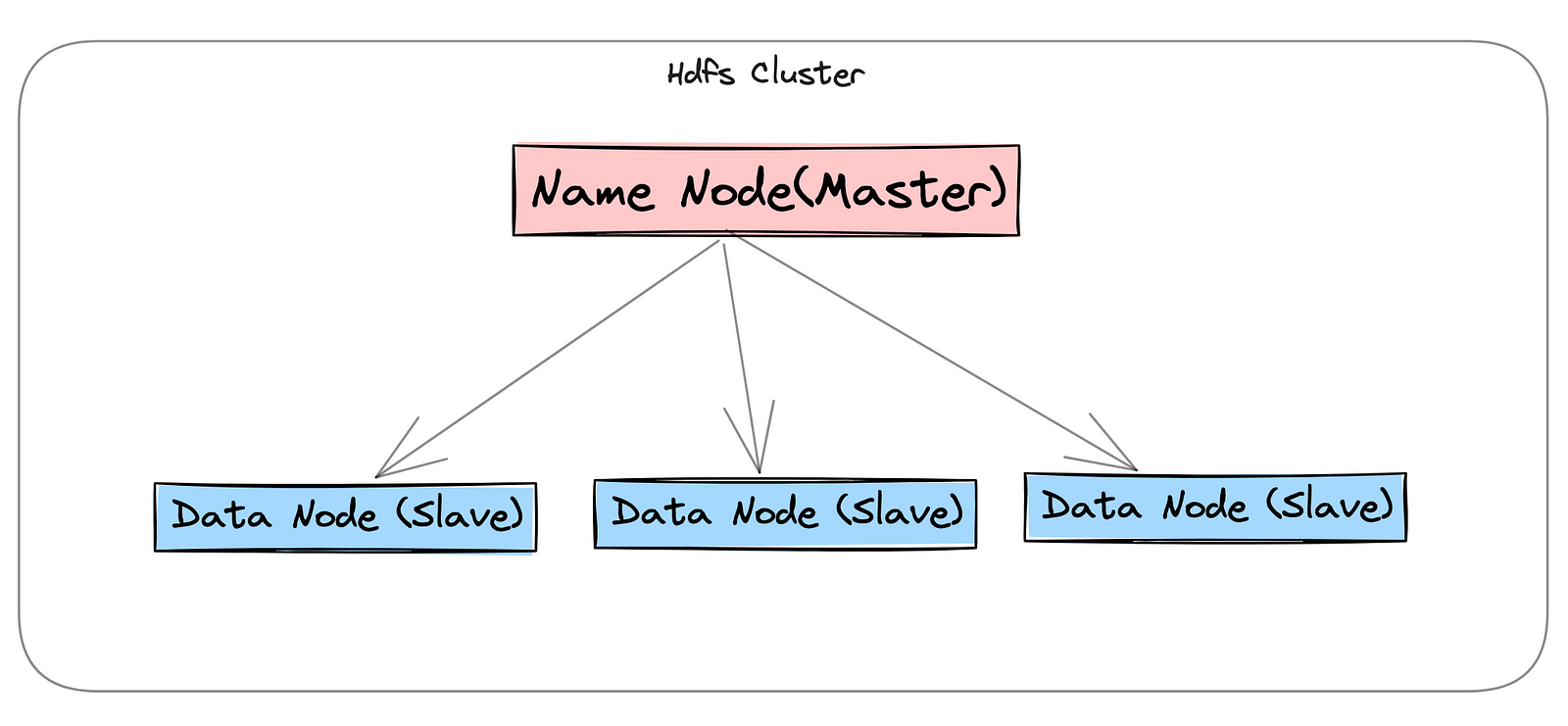

Hadoop Distributed File System (HDFS):

Overview:

HDFS is designed to store large datasets by breaking them into blocks (default 128 MB or 256 MB) and distributing them across a cluster of machines.

Architecture:Consists of a NameNode (master) that manages metadata and DataNodes (slaves) that store actual data blocks.

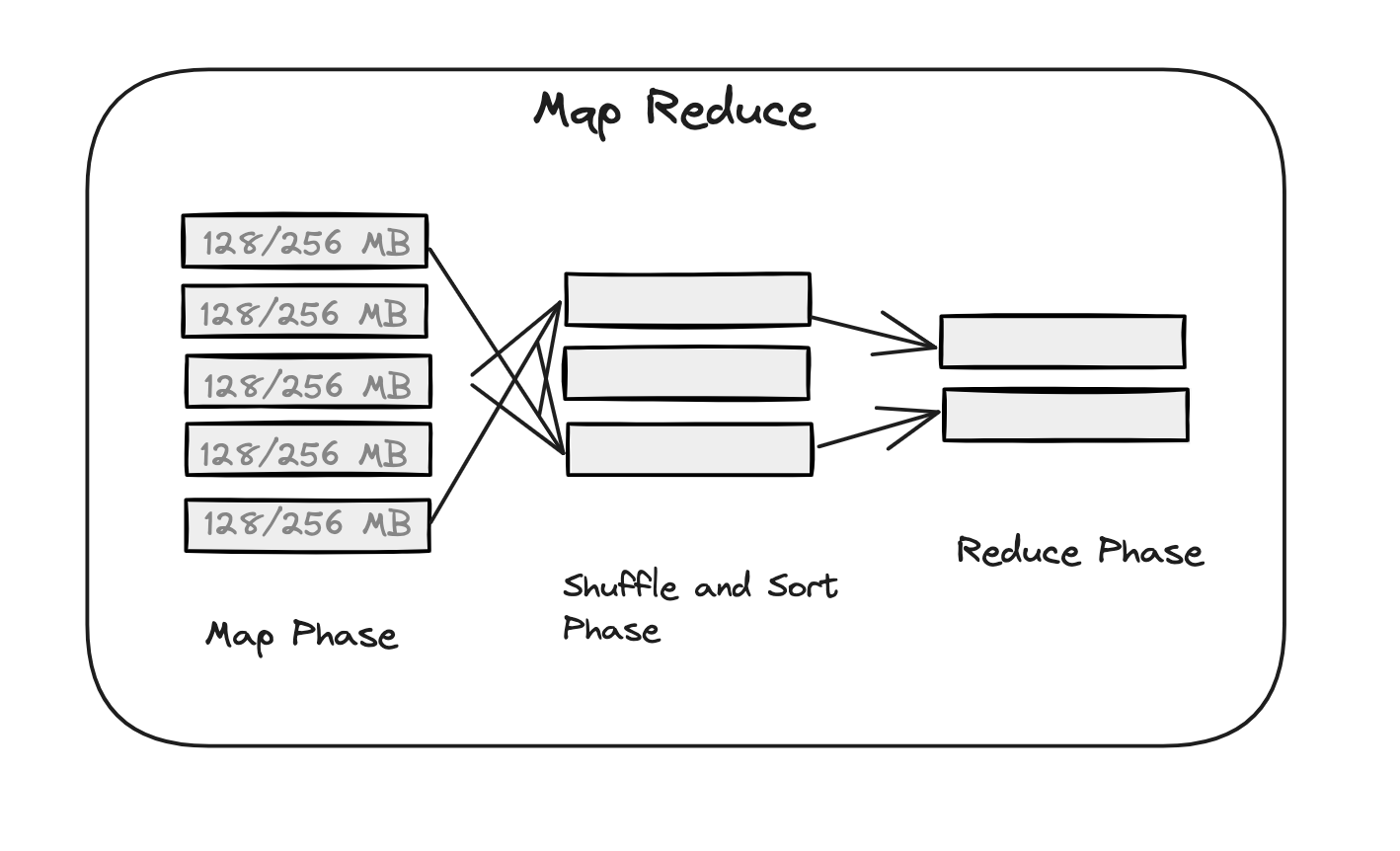

MapReduce:

A programming model and processing engine for distributed data processing.

Architecture:

1. Map Phase:

Steps:

I. Input Splits:

• The input data is divided into manageable chunks called input splits.

II. Map Function Execution:

• The user-defined Map function is applied to each input split independently.
• The Map function generates a set of intermediate key-value pairs.

2. Shuffle and Sort Phase: To organize and group the intermediate key-value pairs produced by the Map phase.

Steps:

I. Partitioning:

• The intermediate key-value pairs are partitioned based on the key.
• Each partition is sent to a specific Reducer.

II. Shuffling:

• Data with the same key from different Mappers are shuffled and grouped together.
• This phase involves data transfer across the network.

III. Sorting:

• Within each group, the key-value pairs are sorted based on the key.

3. Reduce Phase: To process the sorted and grouped intermediate key-value pairs and produce the final output.

Steps:

I. Reduce Function Execution:

• The user-defined Reduce function is applied to each group of key-value pairs.
• It generates the final set of output key-value pairs.

II. Output:

• The final output from the Reducer is written to the Hadoop Distributed File System (HDFS) or another specified location.

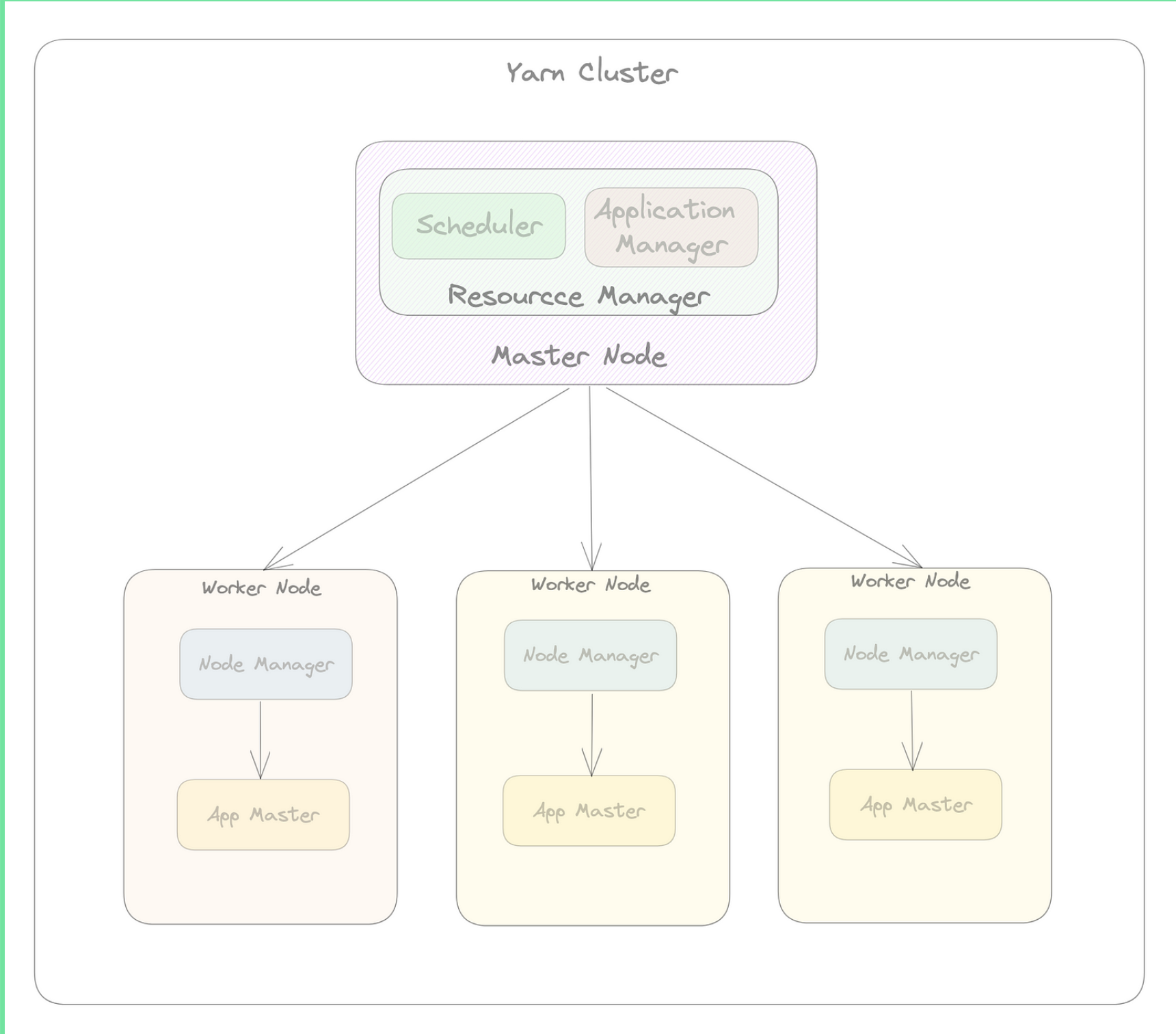

YARN (Yet Another Resource Negotiator):

YARN is a resource management layer in Hadoop that separates the resource management and job scheduling functionalities from the MapReduce programming model. YARN allows multiple applications to share resources efficiently in a Hadoop cluster, providing a more versatile and flexible framework for distributed computing. There are three important elements in Yarn Architecture:

1. Resource Manager (RM)
2. Node Manager (NM)
3. Application Master (AM)

Resource Manager (RM): Central coordinator for resource allocation and job scheduling in the cluster.

Functionality:

• Receives job submissions.
• Allocates resources for applications.
• Monitors resource usage.
• Manages failures and re-allocates resources as needed.

Node Manager (NM): Worker agent running on each machine in the cluster.

Functionality:

• Manages resources (CPU, memory) on the node.
• Starts and monitors containers.
• Reports resource utilization to the Resource Manager.

Application Master (AM): Application-specific framework that negotiates resources from the ResourceManager and works with NodeManagers to execute and monitor tasks.

Functionality:

• Coordinates the execution of tasks.
• Monitors progress and reports to the Resource Manager.
• Requests additional resources if needed.

Explore YARN further with this informative article. Gain insights into the intricacies of Yet Another Resource Negotiator (YARN) and deepen your understanding of its role in efficient resource management within Hadoop clusters.

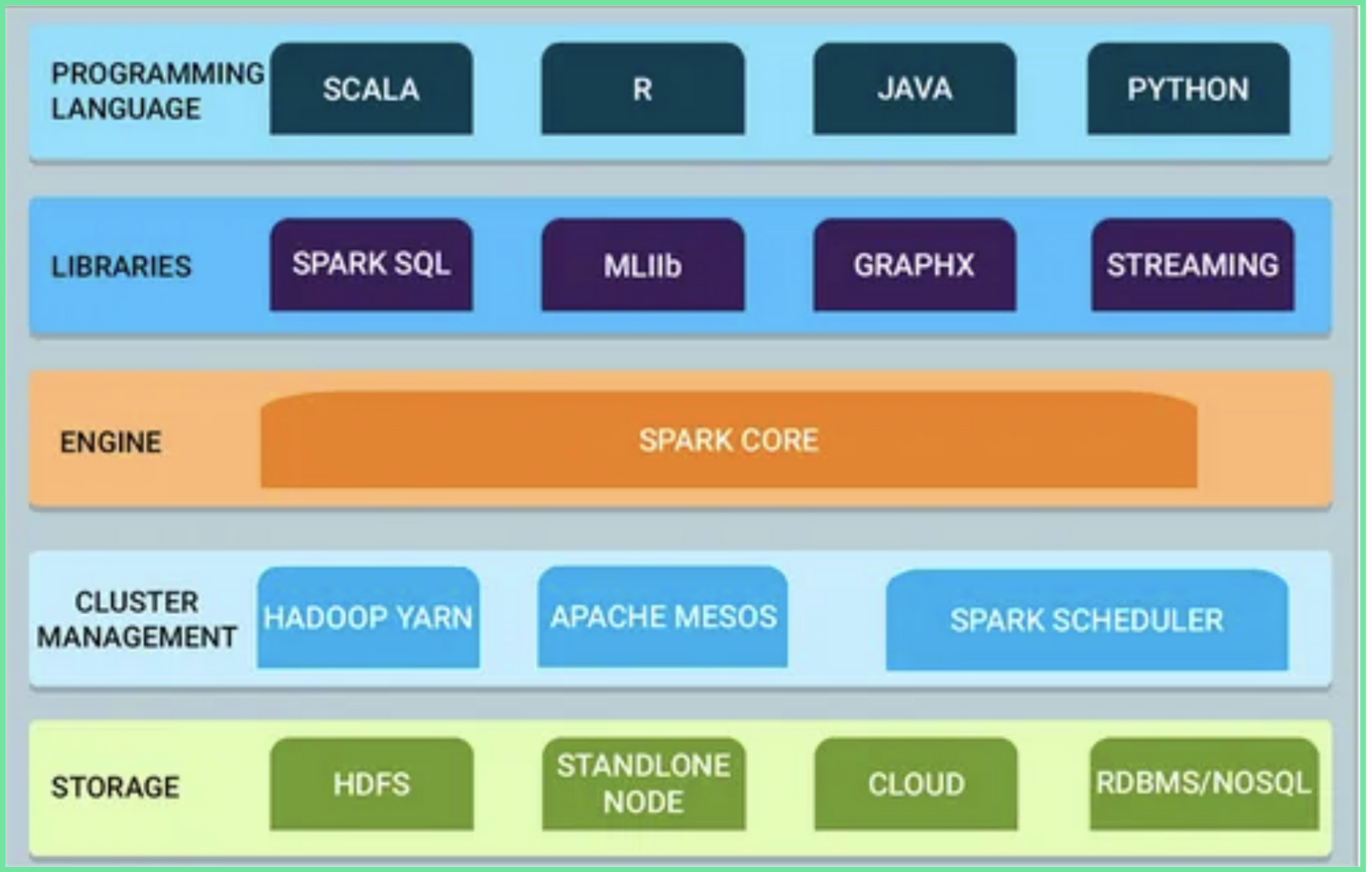

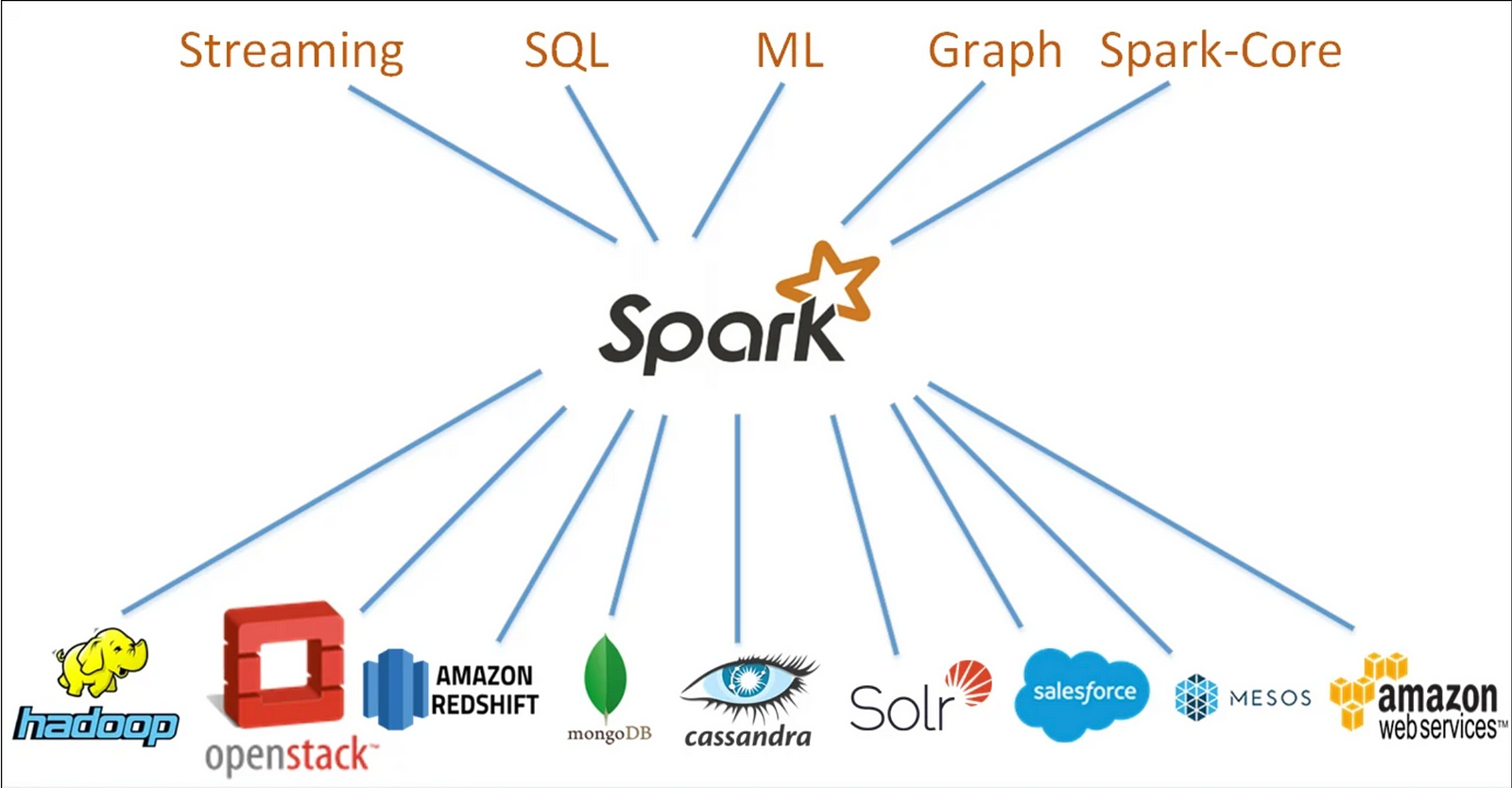

Spark Architecture:

Resilient Distributed Datasets (RDDs):

• RDDs are the fundamental data structure in Spark, representing distributed collections of data.
• RDDs are partitioned across nodes in a cluster and can be processed in parallel.

Spark Core:

• Spark Core provides the basic functionality and APIs for Spark.
• It includes the core computational engine, job scheduling, and task dispatching.

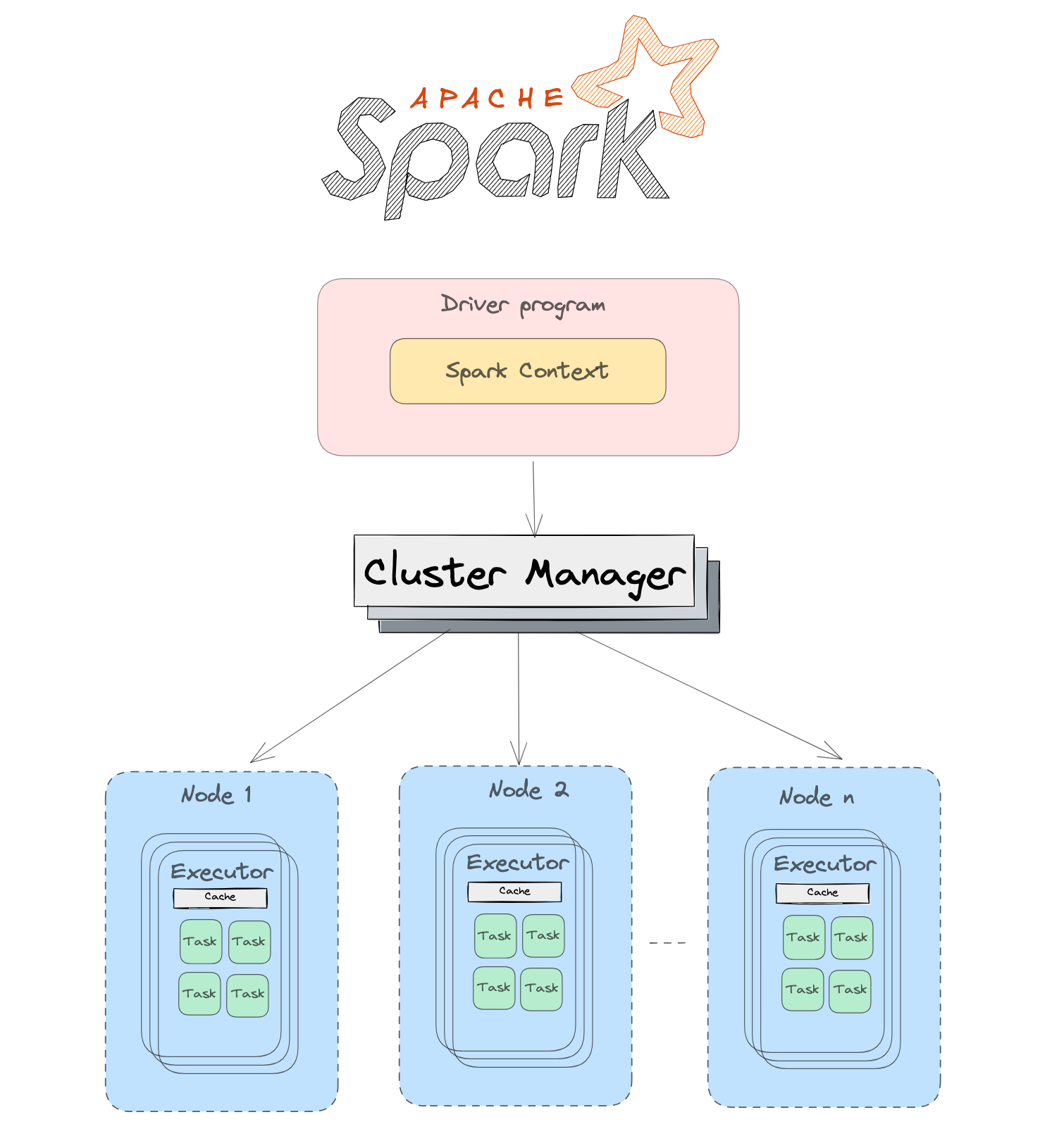

Components:

1. Driver Program:

• The main program that coordinates the overall execution of a Spark application.
• Contains the SparkContext, which is the entry point for interacting with Spark.

2. Cluster Manager:

• Manages resources in the cluster, including task scheduling and node allocation.
• Examples include Spark’s standalone manager, Apache Mesos, and Apache Hadoop YARN.

3. Task Scheduler:

• Allocates tasks to Executor nodes in a cluster.
• Ensures tasks are distributed efficiently across available resources.

4. Executor Nodes:

• Worker nodes where tasks are executed.
• Each Executor runs on a separate node and manages multiple tasks in parallel.

Spark SQL extends Spark Core to provide a programming interface for structured and semi-structured data using SQL queries.

Components:

1. DataFrame API:

• Represents a distributed collection of data organized into named columns.
• Allows SQL-like operations on structured data.

2. Spark SQL Thrift Server:

• Provides a JDBC server for Spark SQL, allowing external applications to query Spark through SQL.

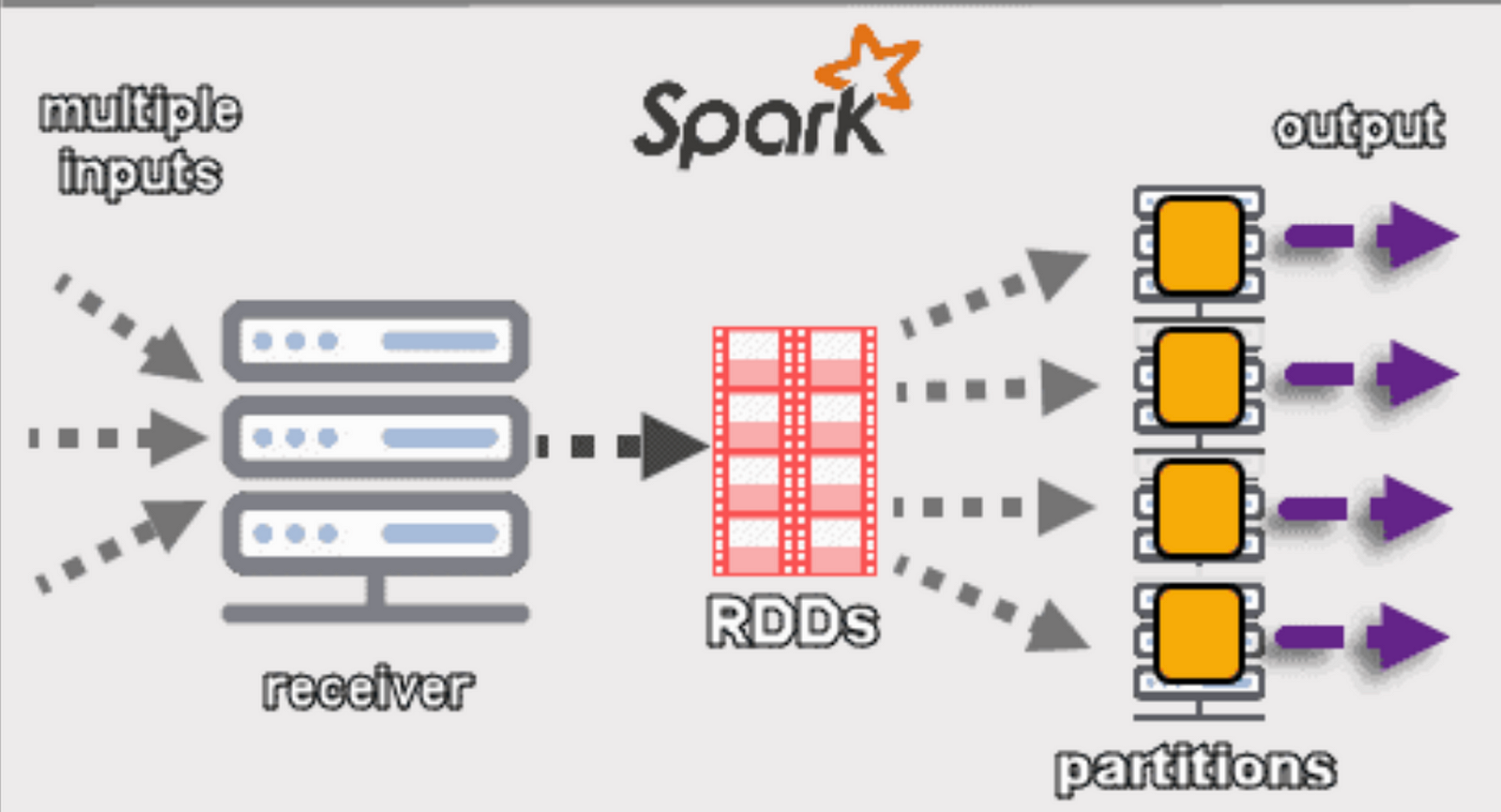

Spark Streaming enables scalable, high-throughput, fault-tolerant stream processing of live data streams.

Components:

1. DStream (Discretized Stream):

• Represents a continuous stream of data divided into small, discrete batches.
• Enables batch processing operations on streaming data.

2. Receiver:

• Ingests live data streams and divides them into small batches.
• Sends batches to Spark for processing.

MLlib (Machine Learning Library) provides a scalable machine learning library for Spark applications.

Components:

1. Algorithms:

• Includes various machine learning algorithms for classification, regression, clustering, and collaborative filtering.

2. Pipelines:

• Allows the construction, evaluation, and tuning of machine learning pipelines.

GraphX is Spark’s graph processing library for scalable and fault-tolerant graph algorithms.

Components:

1. Graph Abstraction:

• Represents graphs as vertex and edge RDDs.
• Enables the execution of graph algorithms in parallel.

2. Graph Operators:

• Provides a set of operators for graph computation, such as triplets, joins, and subgraph views.

Pros & Cons:

Hadoop:

Pros:

1. Reliability:

• Hadoop is like a robust and trustworthy library where you can store and organize large amounts of data.

2. Cost-Effective Storage:

• Storing data in Hadoop is cost-effective, similar to having an economical and spacious storage room.

3. Batch Processing:

• Hadoop is great for handling big chunks of data at once, akin to efficiently processing a large set of books in one go.

Cons:

1. Speed for Processing:

• Processing data in Hadoop is like finding information in a vast library; it might take some time to locate and retrieve what you need.

2. Limited Real-time Processing:

• If you need information in real-time, Hadoop might not be as quick as getting an instant answer.

Spark:

Pros:

1. Speedy Data Processing:

• Spark is like a smart assistant that quickly fetches and processes information, making it ideal for fast data analytics.

2. Versatility:

• Spark is like a versatile office where you can not only read but also interact with and process the information dynamically.

3. Real-time Processing:

• Spark is efficient for real-time processing, similar to quickly responding to queries or changes.

Cons:

1. Resource Intensive:

• Spark, being highly efficient, might require more computing resources compared to Hadoop, similar to needing more staff for a busy office.

2. Learning Curve:

• Understanding and using Spark might be like adapting to a new and advanced office tool; it could take some time to get used to it.

In essence, Hadoop is like a reliable and cost-effective library for storing large amounts of data, while Spark is like a dynamic and speedy office that excels in fast data processing and real-time analytics. The choice between them depends on the specific needs of your data tasks.

Hadoop Use Cases:

1. Batch Processing:

Scenario: When you have large volumes of data to process periodically.

Use Case: Analyzing historical data, running ETL (Extract, Transform, Load) processes, and generating reports.

2. Distributed Storage:

Scenario: When you need a reliable and scalable storage solution for massive amount of data.

Use Case: Storing and managing large datasets efficiently using Hadoop Distributed File System (HDFS).

3. Log Processing:

Scenario: Analyzing log files generated by various applications or systems.

Use Case: Identifying patterns, anomalies, or trends in log data for troubleshooting and optimization.

4. Data Warehousing:

Scenario: When you need to organize and analyze structured data for business intelligence.

Use Case: Storing and querying structured data using tools like Apache Hive.

Spark Use Cases:

1. Iterative Machine Learning:

Scenario: When you need to perform iterative machine learning algorithms on large datasets.

Use Case: Training and refining machine learning models using algorithms like Gradient Boosted Trees.

2. Real-time Data Processing:

Scenario: When you require low-latency processing of streaming data.

Use Case: Analyzing and responding to real-time events, such as monitoring social media feeds for trending topics.

3. Interactive Data Analysis:

Scenario: When you need fast and interactive analysis of data.

Use Case: Exploratory data analysis, interactive querying, and visualization for quick insights.

4. Graph Processing:

Scenario: Analyzing and processing data with complex relationships.

Use Case: Identifying patterns and relationships in social network graphs, fraud detection, and recommendation systems.

Combined Use Cases:

1. ETL with Spark and Hadoop:

Scenario:

When you want to leverage both batch processing and efficient data transformations.

Use Case:

Extracting data from various sources, transforming it using Spark, and then loading it into Hadoop for storage.

2. Data Processing Pipeline:

Scenario:

When you need a comprehensive data processing pipeline.

Use Case:

Ingesting data in real-time using Spark Streaming, storing it in HDFS, and later running batch processing jobs on the stored data.

Conclusion:

Hadoop is well-suited for batch processing, distributed storage, and handling large volumes of data, while Spark is designed for real-time data processing, iterative machine learning, and interactive analysis. Depending on your specific requirements, you might use one or both technologies in tandem to create a robust data processing solution.
